6G-sdi 2-way (bidirectional units)

◦ 4 self-sufficient 6G-SDI connections per unit

  (2x transmitting | 2x receiving)

◦ 4 Neutrik SDI built-in sockets

◦ 4 fiber connections via Duplex-LC SM socket

  (interoperable with Neutrik opticalCON DUO)

◦ power supply via Neutrik True1 Connector

◦ Status LED for every 6G-SDI connection

◦ 1U Rack Mount

◦ automatic identification from SD to 6G-SDI

◦ 10 Bit HD/3G/6G-SDI video in- and outputs

◦ 16 embedded audio-channels (respectively receiving and transmitting)

◦ internal signal reclocking

◦ latency-free video transmission via fiber

  (SM up to 20km | MM up to 2km)

02_6G_sdi_2-way-04 Front Links.png

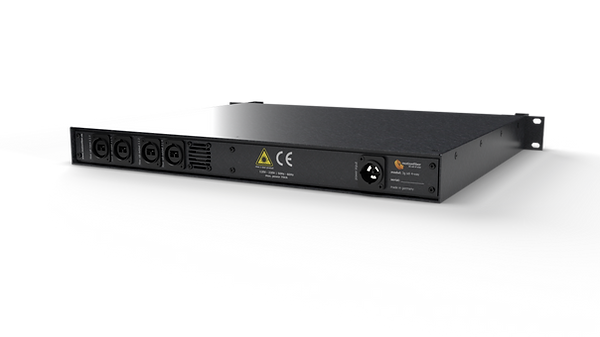

02_3G_sdi_4-way-09 Back Rechts.png
